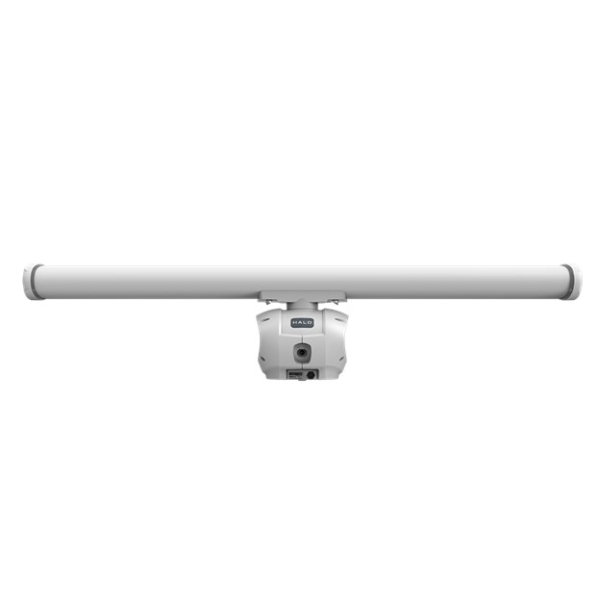

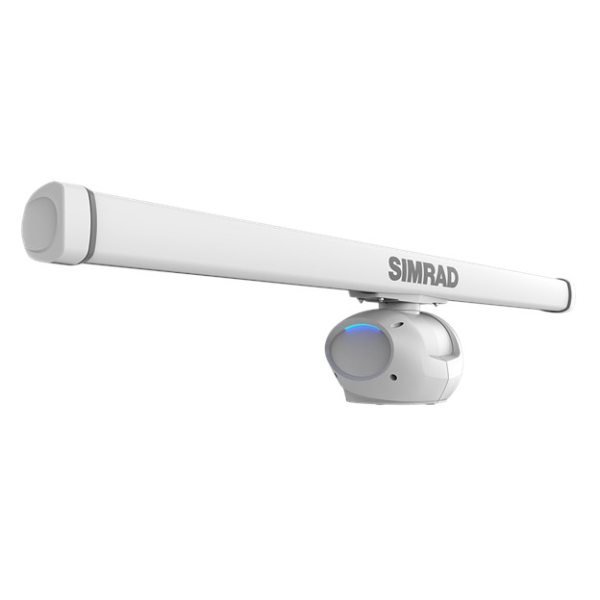

Simrad HALO 2006 Open Array Radar
Simrad HALO 2006 Open Array Radar
Physical
Compass SafeSTD. 1.0 m (3.3 ft) Steer 0.5 m 1.6 ft)
Dimensions W x H x D324 mm x 429 x 339 mm (12.76″ x 16.81″ x 13.35
WeightKit weight 31.6 kg (69.7 lbs)
Electrical
Power Consumption max235 W (peak, 12V) at maximum wind velocity
Recommended Fuse Rating25 A for 12 V systems or 15 A for 24 V
Supply VoltageRadar system input 12 OR 24 V DC into the RI-50; 12 V Systems 10.8 – 15 V DC, 24 V Systems 20 – 31.2 V DC. Pedestal voltage input is 50 V DC nominal generated by RI-50
Environment
Operating Temperature Range-25°C to 55°C (-13°F – 131°F)
Shock VibrationIEC60945 Exposed product
WaterproofratingIPX6
Connectivity
Ethernet PortsVia RI-50, 1 x 100 Mbit RJ45 Adapter to 5 pin yellow supplied)
NMEA 2000 ConnectivityNo NMEA 2000 Connection. Heading and other navication data is sent to the radar over the Ethernet network
Approvals
Approvals ComplianceFCC/IC/RED Type Certification : HALO 2000 SERIES; FCC ID: RAYHALO2000 (Navico Inc.) IC ID:
978B-HALO2000 (Navico Inc.) EU RED: Emissions compliant to SM1541-4 (including -40 dB/dec future design objectives) and EN302-248 V2.1.1
Radar
Beam width1.2° /-10% (-3 dB width) – 0.8° with Beam sharpening mode on: Vertical beam width 25° /-10 % (-3 dB width)
Max Range, scale72 nm
Max Wind Speed80 Knots (all antenna sizes)
Min Range, scale75 m (300 ft)
Radar ModesHead Up, North Up
Radar TechnologyPulse Compression
Rotation speed16 to 48 rpm depending on operating mode.
Sart RaconYes – trigger distance: about 1nm max – weather, seastate, and SART position dependent
Other
Interface Simrad MFD
Warranty Period 2 Years
