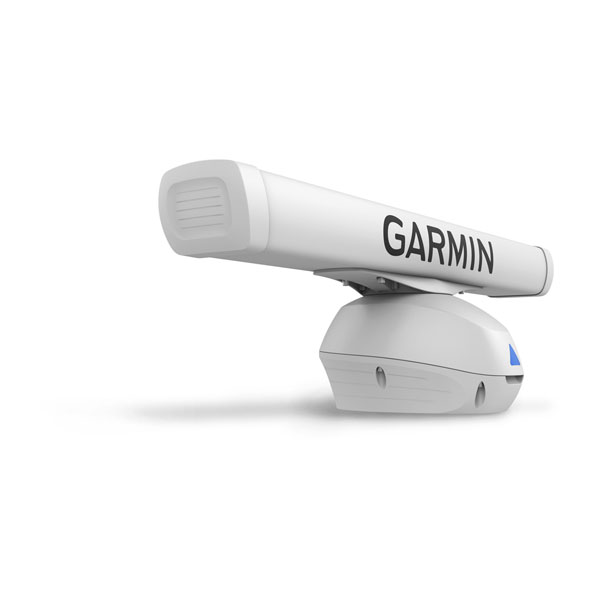

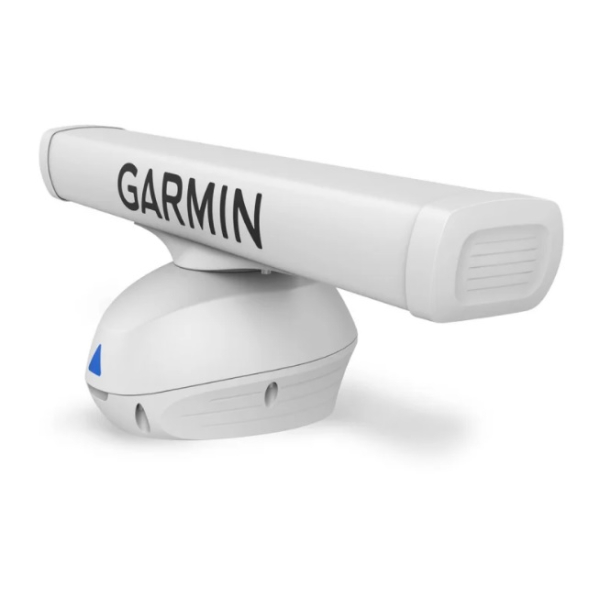

Garmin GMR Fantom 254 Antenna and Pedestal

Garmin GMR Fantom 254 Antenna and Pedestal

MENSION    Pedestal: 16.6″ x 14.3″ x 10.7″ (42.1 x 36.4 x 27.1 cm)
Full assembly: 15.9″ height x 51.8″ diameter (40.3 cm x 131.4 cm)
WEIGHT
Array: 11.4 lb (5.2 kg)
Pedestal: 34.7 lb (15.7 kg)
WATERPROOF    IPX6
MAX WIND LOAD    80kt
ANTENNA LENGTH    48″ (121.92 cm)
ROTATION SPEED (RPM)    24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
BEAM WIDTH    1.8° horizontal, 23° vertical
MAXIMUM RANGE    96 nm
MINIMUM RANGE    6 meters
RADAR TYPE    Open-Array

Electrical Features
POWER INPUT    10-32 V
TRANSMIT POWER    250 W

Radar Features
DUAL RANGE    Yes
OVERLAY    Yes
DUAL RADAR SUPPORT    Yes
AUTO BIRD GAIN    Yes
AUTO GAIN    Dynamic
MARPA TARGET TRACKING    yes (requires heading sensor, sold separately)
ECHO TRAILS    Yes
MOTIONSCOPE    Yes
PROGRAMMABLE ANTENNA PARKING    Yes
TARGET SIZE    Yes
SCAN AVERAGING
