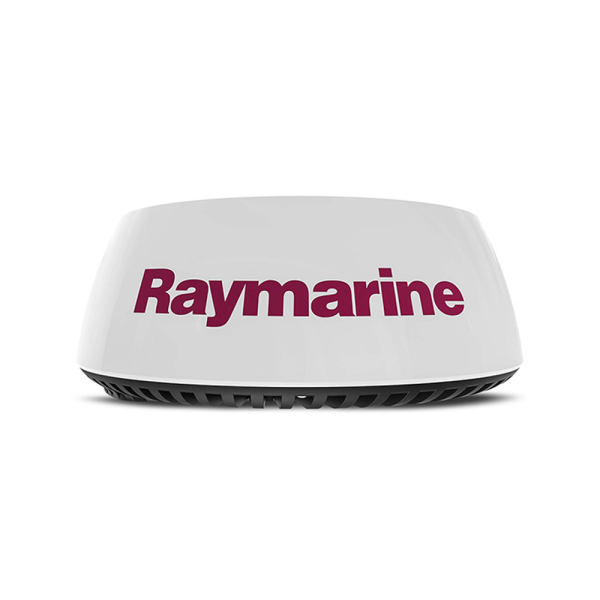

Raymarine QUANTUM Q24C 18″ Radar – Sale



GENERAL

Dimensions: Diameter | Height
541.0 mm I 209.5 mm

Weight
5.6 kg

Supply voltage
Either 12 V dc or 24 V dc nominal

Operating voltage range
Minimum: 10.8 V dc | Maximum: 31.2 V dc

Power Consumption
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W

Waterproofing
IPX6

Operating temperature range
-10°C to 55°C

Storage temperature range
-25°C to 70°C

Additional storage conditions
Store upright; do not block vents on underside

Humidity
Up to 95% at 35°C

Maximum wind speed
100 kts

Range scales
1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles

TRANSMITTER

Type
X-band solid-state transmitter with pulse compression technology

Transmit frequency
9354 MHz to 9446 MHz

Peak power output
20W

Duplexer
Circulator

Pulse widths (3 dB)
40 ns to 14.7 us

Chirp lengths
400 ns to 22 us

Pulse repetition frequency
920 Hz to 5900 Hz

Chirp bandwidth
Up to 32 MHz

Standby mode
Scanner rotation – OFF | Scanner transmission – OFF | Wi-Fi link – ON

RECEIVER

IF frequency
26 MHz

Noise figure
Less than 4 dB

ANTENNA

Type
Patch array

Beamwidth (nominal)
Horizontal: 4.9° | Vertical: 20°

Polarization
Horizontal

Rotation speed
24 rpm nominal

TARGET TRACKING

Target tracking
Tracking of 10 simultaneous Radar targets

TRANSMITTER

Type
X-band solid-state transmitter with pulse compression technology

CHIRP bandwidth
Up to 32 MHz

Standby mode
Scanner rotation – OFF, Scanner transmission – OFF, Wi-Fi link – ON

Duplexer
Circulator

Transmit frequency
9354 MHz to 9446 MHz

Pulse repitition frequency
920 Hz to 5900 Hz

CHIRP lengths
400 ns to 22 µs

Pulse widths (3 dB)
40 ns to 14.7µs

Peak power output
20 W

ENVIRONMENTAL

Humidity
Up to 95% at 35°C

Additional storage conditions
Store upright; do not block vents on underside

Waterproof rating
IPx6

Storage temperature range
-25°C (-13° F) to 70°C (158° F)

Maximum wind speed
100 kts

Operating temperature range
-10°C (14° F) to 55°C (131° F)

Range scales
1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles

TARGET TRACKING

Target tracking
Tracking of 10 simultaneous Radar targets.

CONFORMANCE

Standards (Canada)
RSS238 Iss. 1, Technical Acceptance Certificate

Standards (European Union & EFTA)
Radio Equipment Directive 2014/53/EU, Certificate of Opinion

Standards (Australia/New Zealand)
ACMA Declaration of Conformity, Compliance level 3

Standards (USA)
47CFR FCC Part 2 & Part 80, Certificate of Approval

ANTENNA

Type
Patch Array

Beamwidth (nominal)
Horizontal: 4.9°, Vertical: 20°

Polarization
Horizontal

Rotation speed
24 rpm nominal

RECEIVER

Noise figure
Less than 4 dB

IF frequency
26 MHz

PHYSICAL

Diameter
541.0 mm (21.3 in)

Weight
5.6 kg (12.35 lbs)
