This incredibly powerful open-array radar is perfect for cruising and fishing offshore, overnight and in foggy, limited or no-visibility conditions.Serious seafarers like you need serious range — up to 96 nautical miles.See targets in incredible detail, even at a distance.Add even more detail to your maps with radar overlay — even in a split-screen view.See flocks of birds on the water, and find baitfish below.
$2,299.00

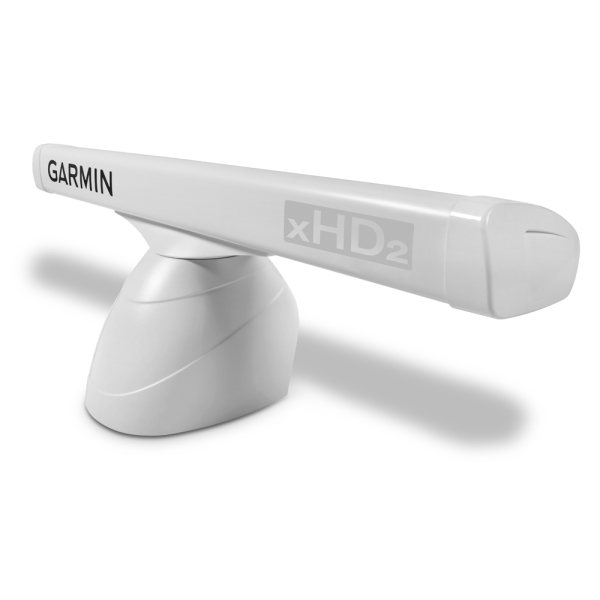

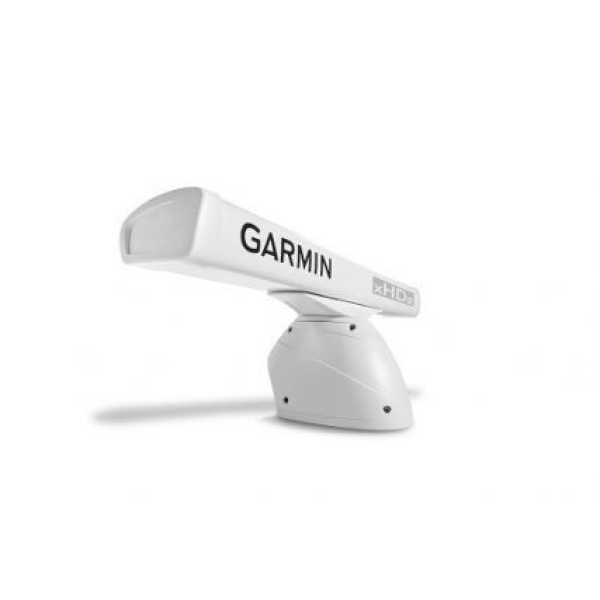

Garmin GMR 2526 xHD2 Open Array Radar and Pedestal
General
DIMENSION
6′ array: 76.25″ x 5″ x 6.75″ (193.6 x 12.7 x 17.1 cm)
Pedestal: 20.5″ x 12.75″ x 12.5″ (52 x 32.4 x 31.8 cm)
WEIGHT
array: 16.9 lb (7.7 kg)
pedestal: 47.1 lb (21.4 kg)
WATERPROOF IPX6
MAX WIND LOAD 80kt
ANTENNA LENGTH 72″ (182.88 cm)
ROTATION SPEED (RPM) 24 and 48 rpm
BEAM WIDTH 1.1° horizontal, 23° vertical
MAXIMUM RANGE 96 nm
MINIMUM RANGE 20 meters
RADAR TYPE Open-Array
Electrical Features
POWER INPUT 10-32 V DC
TRANSMIT POWER 25 kW
Radar Features
DUAL RANGE Yes
OVERLAY Yes
DUAL RADAR SUPPORT Yes
AUTO BIRD GAIN Yes
AUTO GAIN Dynamic
MARPA TARGET TRACKING Yes
ECHO TRAILS Yes
PROGRAMMABLE ANTENNA PARKING Yes
TARGET SIZE Pulse Expansion
