<span class=”blurb”>Magnum 12 kW is our most powerful Magnum open array radar. Available with either a 4-foot or 6-foot open array antenna, Magnum 12 kW is the choice of marine professionals and offshore enthusiasts. Choose the 4-foot model for high performance, compact radar, or experience the benefits of extended range and improved target resolution with the 6-foot array option.
$1,750.00

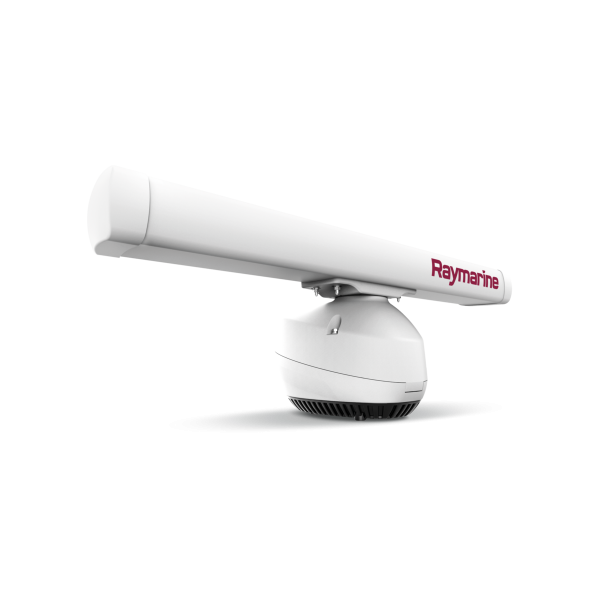

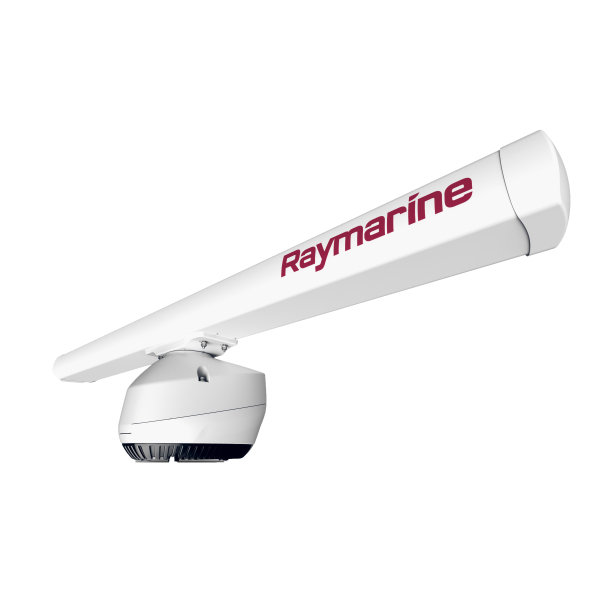

Raymarine MAGNUM 12 KW 6 Foot Radar Pack
Power consumption
Standby: < 30 W
Power consumption
Sleep: < 1.2 W
Nominal supply voltage
Using VCM100: 12 V dc / 24 V dc
Operating voltage range
Using VCM100: 10.8 V dc to 31.2 V dc
CONFORMANCE
Standards
USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3
ENVIRONMENTAL
Relative humidity
Up to 95% @ 35°C (95°F)
Waterproof rating
IPx6
Maximum wind speed
85 knots
Operating temperature
-25°C to 55°C (-13°F to 131°F)
RADAR
Maximum range scale
72 nautical miles
Beamwidth (horizontal)
4′ Array: 1.85° (nominal)
6′ Array: 1.15° (nominal)
Peak power output
4 kW
Standby mode
Magnatron heater: ON, Magnetron control: ON, All other services: OFF
Polarization
Horizontal
Transmit frequency
9405 MHz ±20 MHz
Warm-up time
75 seconds
Beamwidth (vertical)
25° (nominal)
Rotation speed
24 RPM / 48 RPM
Standby to transmit
2.5 seconds
PHYSICAL
Dimensions
Height (including antenna): 430 mm (16.9 in), Length: 409 mm (16.1 in), Width: 314 mm (12.3 in)
Dimensions
4 ‘ Array: 1306 mm (51.4 in)
6’ Array: 1918 mm (75.7 in)
Weight
29 kg (63.93 lbs)
