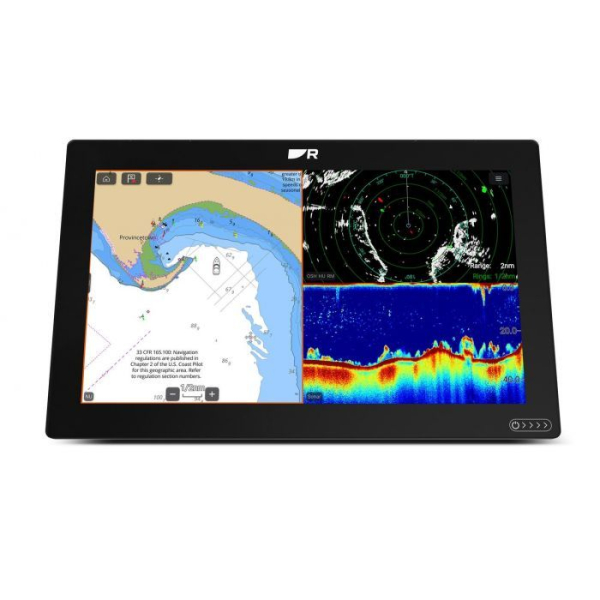

Raymarine Axiom 2 XL 19 Glass Bridge Chartplotter

Raymarine Axiom 2 XL 19 Glass Bridge Chartplotter

ENVIRONMENTAL

Operating temperature
-25°C to 55°C (-13°F to 131°F)

Storage temperature
-30°C to 70°C (-22°F to 158°F)

Relative humidity
up to 93% @ 40°C (104°F)

Waterproof rating
IPx6, IPx7

PHYSICAL

Dimensions
Axiom 2 XL 16: Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in)

Axiom 2 XL 19: Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)

Axiom 2 XL 22: Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)

Axiom 2 XL 24: Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)

Weight
Axiom XL 16: 5.9 kg (13 lbs)
Axiom XL 19: 7.6 kg (16.76 lbs)
Axiom XL 22: 9.9 kg (21.83 lbs)
Axiom XL 24: 11.3 kg (24.9 lbs)

USB connection
USB-A: Touch input, USB-B: Touch output

Accessory connection
USB Micro B

GPS antenna connection
TNC type connector

External storage
Remote card reader required

Ethernet connection
PoE RayNet (10/100/1,000 Mbits/s) x 3

HDMI connections
HDMI in, HDMI out

Audio output
Left and Right RCA connectors via Power/Video/Audio cable.

Analog video connections
Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)

NMEA 0183 Support
Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)

NMEA 2000 connection
DeviceNet connector

Wireless connections
Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n

External alarm connection
Bare-ended wires x 2

Internal storage
64 GB Solid State

LCD

Resolution
Axiom 2 XL 16: 1920 x 1080 pixels
Axiom 2 XL 19: 1920 x 1080 pixels
Axiom 2 XL 22: 1920 x 1080 pixels
Axiom 2 XL 24: 1920 x 1200 WUXGA
