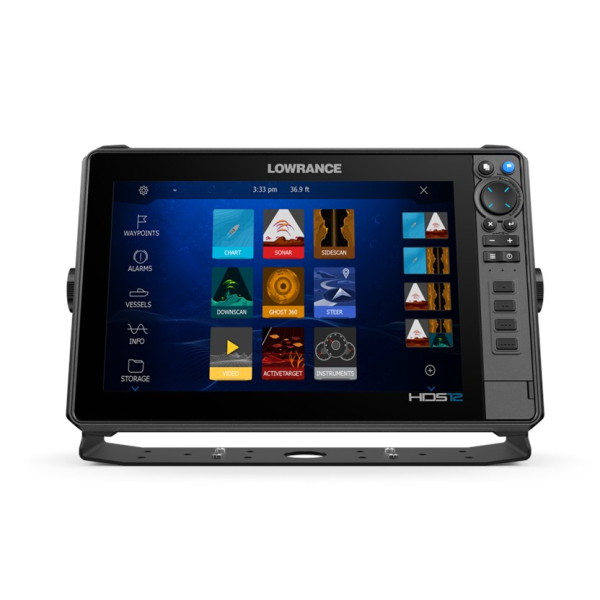

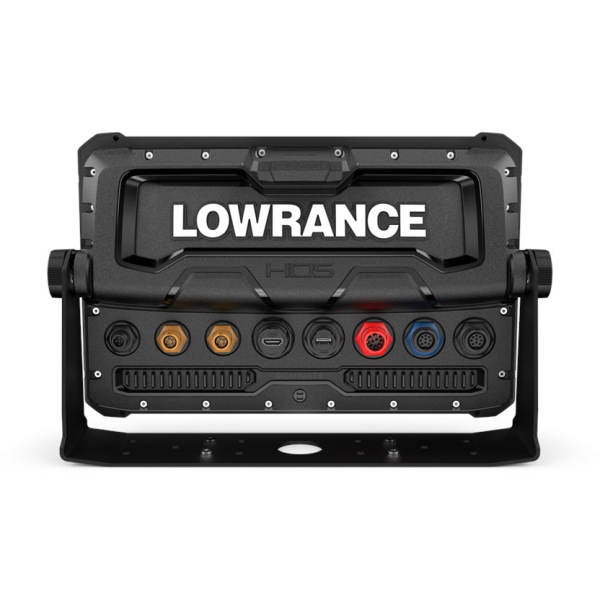

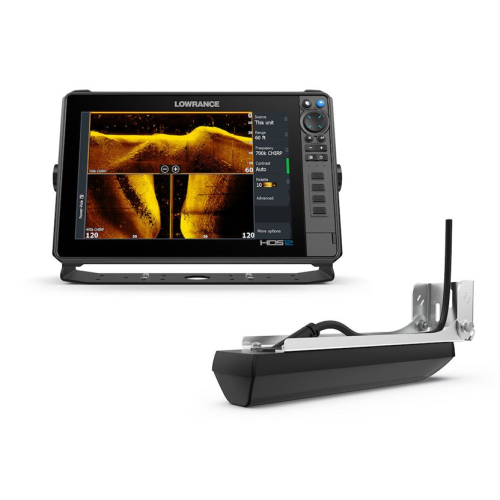

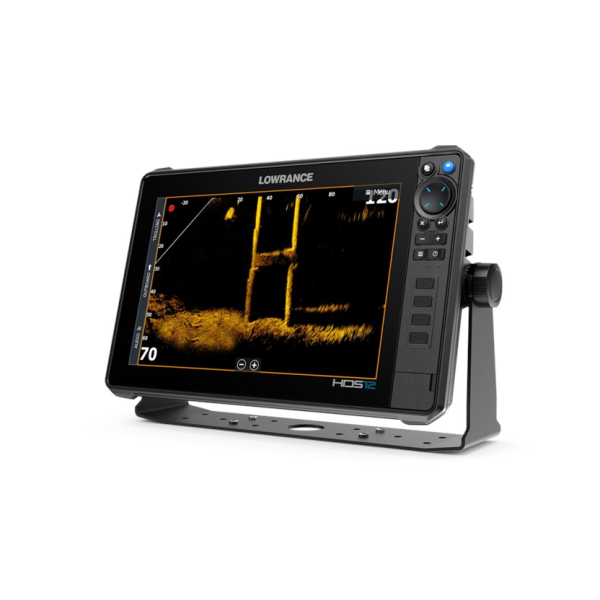

New Lowrance HDS PRO 12

New Lowrance HDS PRO 12

Display
Backlight Color    Pure White LED
Display Resolution    1280 x 800
Screen Brightness    >1200 Nits
Viewing Angles    80° top/bottom, 80° left/right

Electrical
Power Consumption max    3.6A @ 13VDC with Full Backlight, Sonar on
Power Consumption min    2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical    2.3A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating    5A
Supply Voltage    12 v DC (10.8-17 V DC)

Physical
Dimensions    W x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm)
Weight    6.5lb (2.95kg)
Compass Safe    1.6 ft (50 cm)
Mounting Type    Panel mount or bracket mount

Environment
Humidity    60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range    5°F to 131°F (-15°C to 55°C )
Shock Vibration    100,000 cycles of 20 G
Storage Temperature Range    4°F to 140°F (-20°C to 60°C )
Waterproof rating    IPX7 with card door closed

Interface
Touchscreen    Full Multi-touch touchscreen
Keypad    8-way directional keypad
User programable keys    4
Buttons    Zoom /-, Exit, Enter, Menu, Waypoint, Power / Light

Connectivity
Bluetooth    Bluetooth® 5.2 with support for Bluetooth® classic
Ethernet Ports    2 x 100 Mbit, 6 max MFD’s on a network
Connectivity Wi Fi    Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000    1x Micro-C
SD Card Storage    via Power cable

Video
Output    None
Composite video    1 xRCA – single channel via an optional adaptor cable
HDMI    1 port for external input (HDMI® 1.4 sink and HDCP)

GPS
Correction    DGPS, WAAS
GPS Receiver Channels    16
Position Accuracy    20m RMS
Time to First Fix    30s
Update rate    10 Hz
