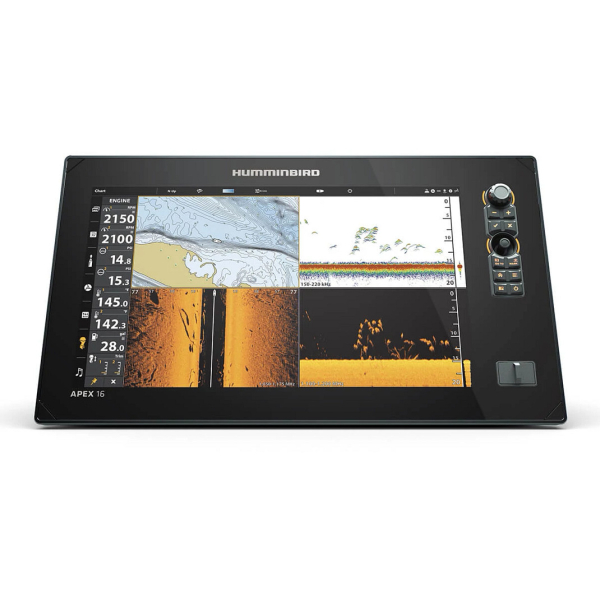

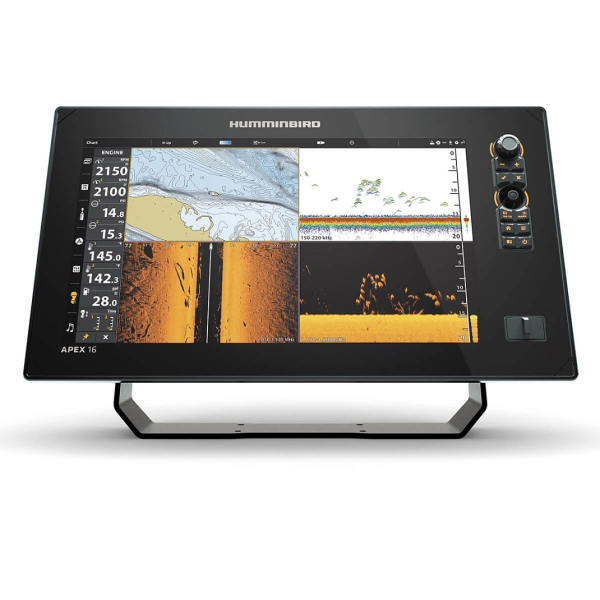

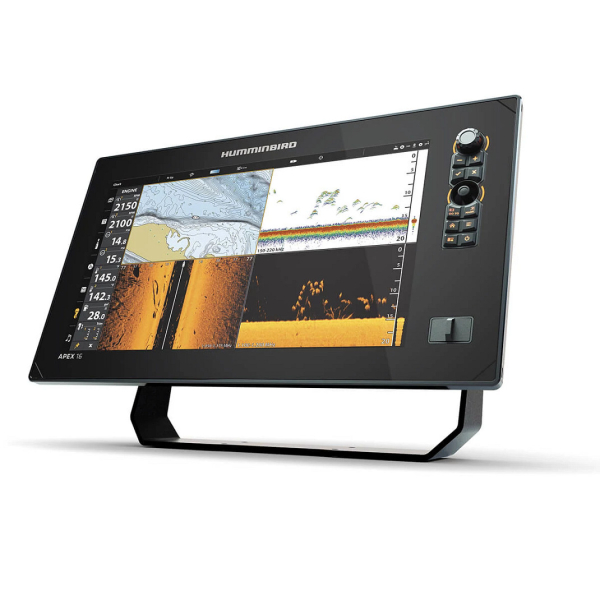

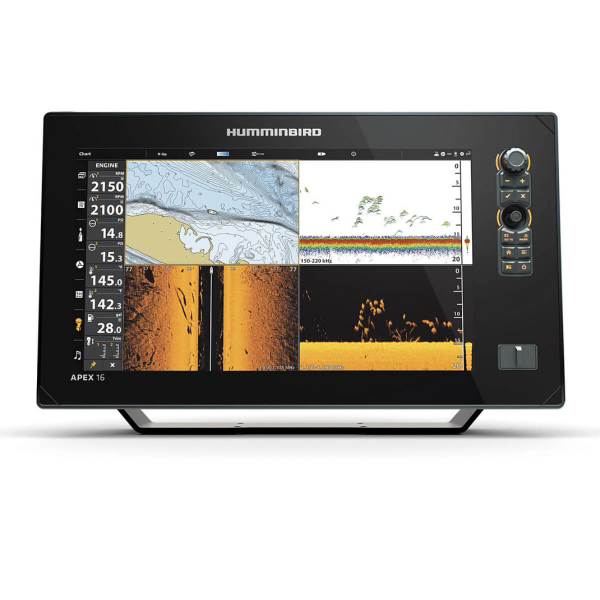

Humminbird APEX 16 MEGA SI Plus CHARTPLOTTER

Humminbird APEX 16 MEGA SI Plus CHARTPLOTTER

2016 – 2025 Humminbird APEX chart for sale

provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. Industry-leading MEGA Imaging and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. See it all clearly with a 15.6″ Full-HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi and Bluetooth®.

SPECS :

Item Number    104656
Series    APEX
Display Size – Diagonal    15.6″
Display Pixel Matrix    1920H x 1080V
Sonar-Standard    Dual Spectrum CHIRP, MEGA Down Imaging , MEGA Side Imaging
Sonar-Coverage    20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional    50 kHz, 50/Low Airmar CHIRP and SM3000
CHIRP – Frequencies Supported    Full Mode (28-75 kHz), Narrow Mode (75-155 kHz), Wide Mode (130-250 kHz), Optional Deepwater (28-250 kHz)
Sonar-Frequencies Supported    50/83/200/455/800 kHz & 1.2 MH
